Digital Pressure Gauge

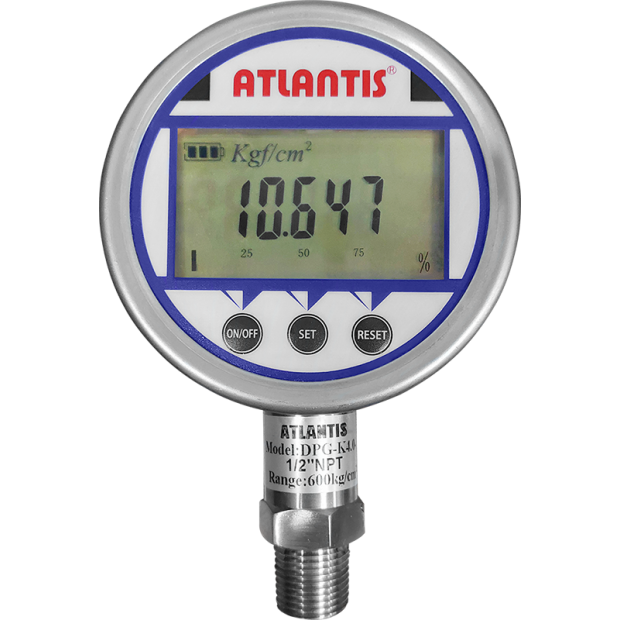

Digital Pressure Gauge DPG-KS4.0
Digital Pressure Gauge DPG-KS4.0
Features
■ OEM service
■ SS304 case & connection
■ 6-digit LCD display, high resolution
■ Accuracy ±0.5%F.S. / ±0.2%F.S.
■ Various pressure units available
■ OEM service
■ SS304 case & connection
■ 6-digit LCD display, high resolution
■ Accuracy ±0.5%F.S. / ±0.2%F.S.
■ Various pressure units available
DETAIL
Model: DPG-KS4.0
Features
■ OEM service
■ SS304 case & connection
■ 6-digit LCD display, high resolution
■ Accuracy ±0.5%F.S. / ±0.2%F.S.
■ Various pressure units available
Main Specifications
▼Size
4”(100mm)
▼Pressure connection
Material: SS304
1/2”PT
1/2”NPT
Other thread type available
upon request
▼Pressure range
0…1 to 1000 bar
▼Applicable fluid
Liquid and gas that compatible
with SS304
▼Ambient temperature
-10°C to +60°C
▼Fluid temperature
+60°C
▼Ambient humidity
85% R.H.
▼Atmospheric pressure
860…1060 mbar
▼Temperature error
Standard temperature: 22℃
max. error: ±0.5% F.S (@0~50℃)
▼CE certificate
EN61326-1:2013
Other Specifications
▼Ring
SS 304
Inside bayonet
▼Case
SS304
▼Screen display
6-digit LCD display
▼Screen size
65 x 37mm
▼Refresh rate
5 times/sec
▼Pressure unit
kg/cm2, bar, MPa, Pa, mmH2O, kPa, psi, mH2O
▼Resolution
0.0001
▼Measuring elements
High-tech silicon chip
SS316L Diaphragm
▼Accuracy
±0.5%F.S. / ±0.2%F.S.
▼Operating pressure
Overpressure: 1.5* full scale
Burst pressure: 2* full scale
▼Temperature compensation
0°C to 50°C
▼Power supply
AA batteries x 2 or
3.6V lithium battery
▼Battery life
About one year (depends on the frequency of use)
▼Weight
480g
