Diaphragm seals generally install on pressure gauge, switch, transmitter and other instruments to protect diaphragm from corrosive, crystallized, viscous and high temperature media that may cause blockage or damage to pressure measurement system.
Different materials and pressure range can be chosen according to actual using media, connected pressure gauges, operating temperature and other factors.

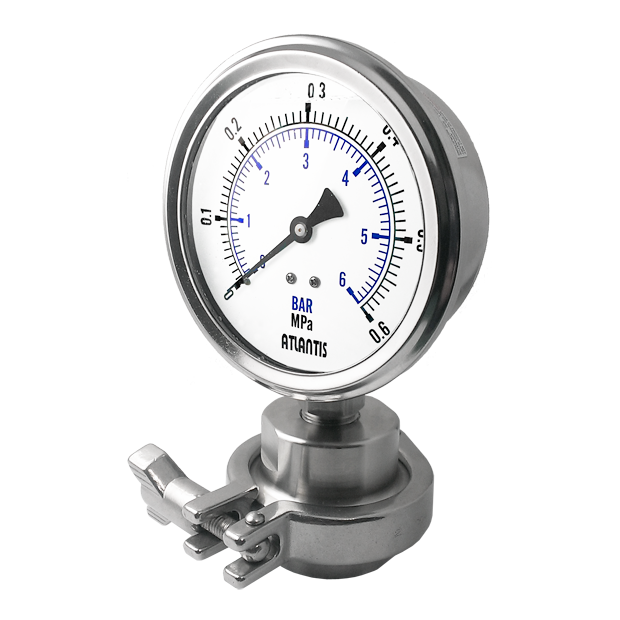

DIAPHRAGM PRESSURE GAUGE - Sanitary Process Connection – Tri-Clamp Type, DS500 series
DS500 series is particularly used in food, beverage, biochemical and pharmaceutical industry. Easy to open, cleaning without residues and quickly measuring point.

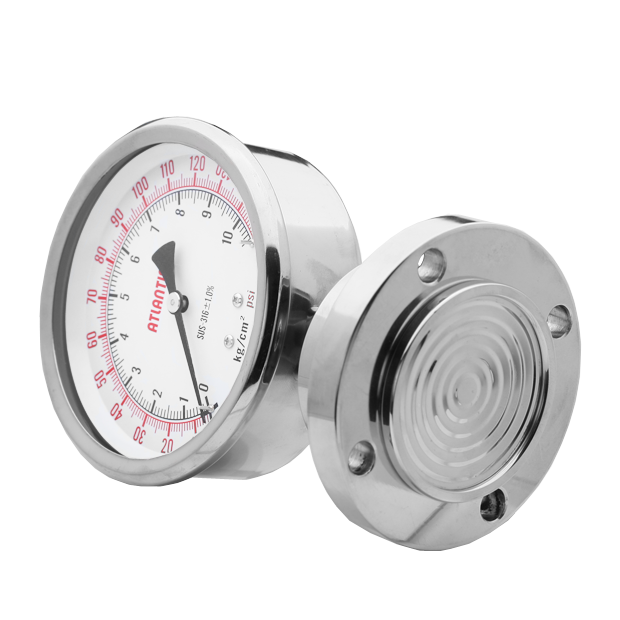

DIAPHRAGM SEALED Flange Process Connection－Single flange type - DS300 series
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous, crystalline or with impurities. Flange type diaphragm seal is especially suitable for highly viscous or crystalline media, particularly used in chemical and petrochemical industry.

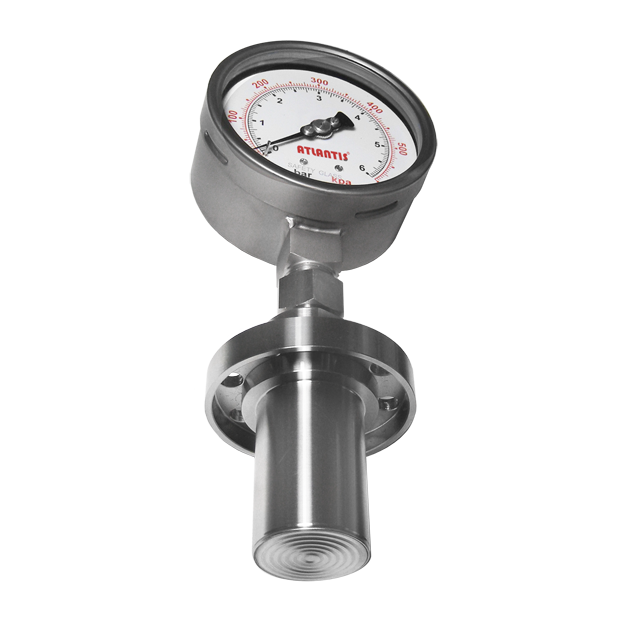

DIAPHRAGM SEALED Flange Process Connection－Extended diaphragm type - DS300L series
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous, crystalline or with impurities. Flange type diaphragm seal is especially suitable for highly viscous or crystalline media. DS300L is with an extended welded diaphragm with contoured diaphragm bed, especially for thick wall or #isolated tanks and pipelines.
Isolate pressure gauge from corrosive, viscous, and low crystallinity fluid./Base on the diaphragm material is PTFE, the minimum measureable pressure is 1000mmH2O /Threaded diaphragm seals with flushing hole (option)
Double flange diaphragm pressure gauge is applicable to special working environment and corrosive fluids, such as high temperature, acid, polluted water, heavy oil, concrete and used in the pressure measurement of the working fluid easy to be crystallized, such as petroleum plant, chemical factory, paper mill, sewage treatment, dye, paint and so on.

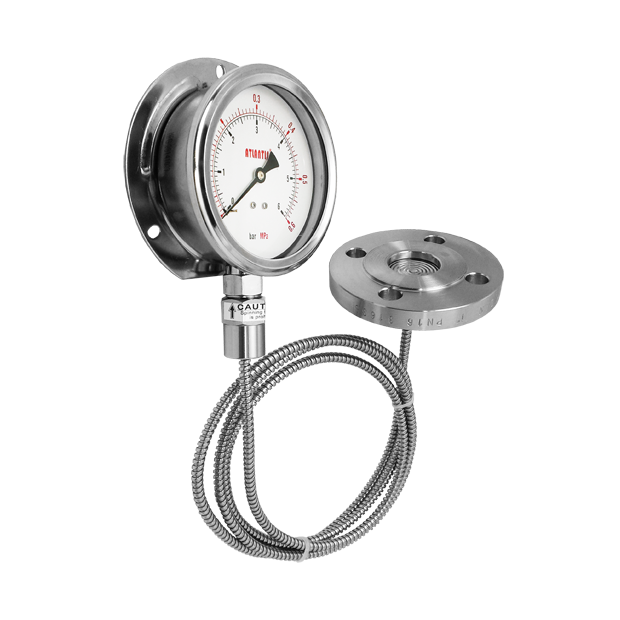

DIAPHRAGM SEALED Simple Flange Process Connection－Single/Double flange type - DS250 series
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous, crystalline or with impurities. Flange type diaphragm seal is especially suitable for highly viscous or crystallizing media. DS250 can be used for low pressure from 3 psi. It can be cleaned by removing the lower housing.
Features
■ OEM service
■ Strict overpressure and fatigue test
■ High frequency vibration - to eliminate residual stress in Bourdon tube
■ Specially design for destiny control
■ Gold plating contact - better conductivity and chemical stability

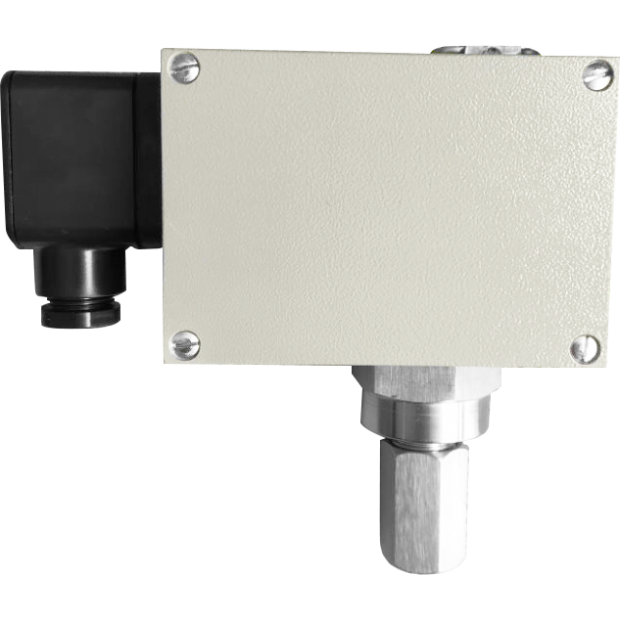

AT511-7DS pressure switch adopts DPDT type micro switch to achieve dual controls function. With SS316L bellow as measuring elements, AT511-7DS is suitable for corrosive gas and liquid measurement.
Adjustable pressure range: -0.1⋯0 to 6.3MPa.
Features
■ OEM service
■ Economic differential pressure switch with various applications
■ Standard support rack (L-shape) included
■ Differential pressure switch

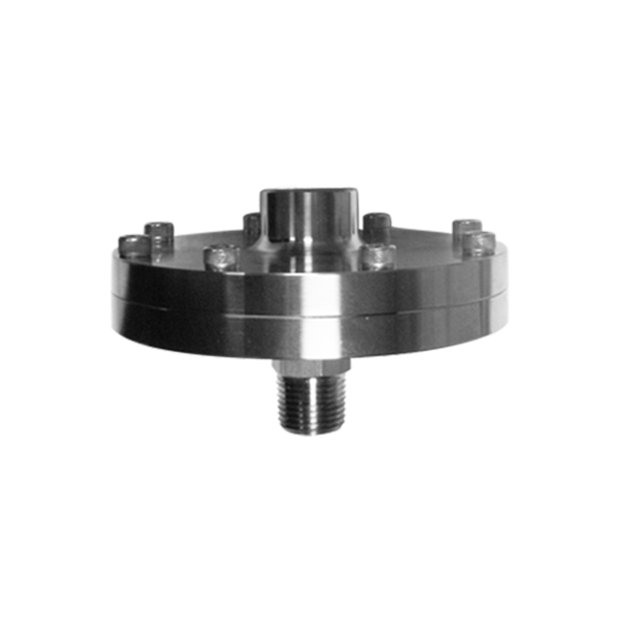

Diaphragm Seal (Screw Fixed Type) DS190(S)
DIAPHRAGM PRESSURE GAUGE - Sanitary Process Connection – Tri-Clamp Type, DS500 series
DIAPHRAGM SEALED Flange Process Connection－Single flange type - DS300 series
DIAPHRAGM SEALED Flange Process Connection－Extended diaphragm type - DS300L series

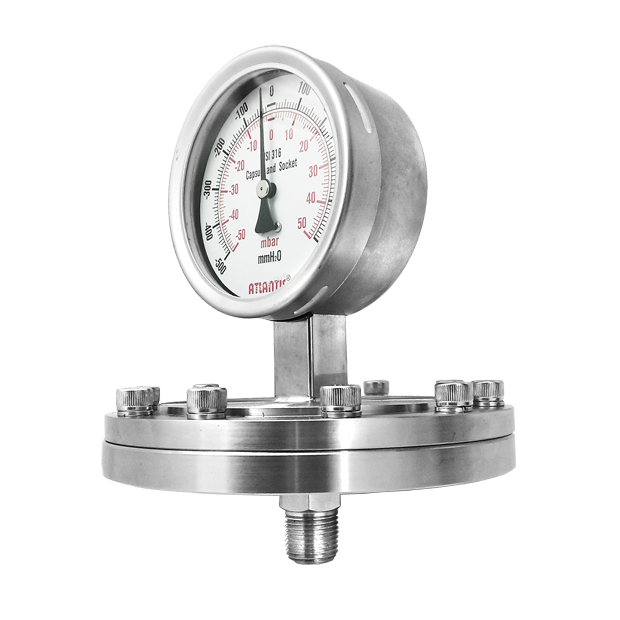

Dry Type Threaded Diaphragm Seals DDS1160 (S)
Dry Type Double Flange Diaphragm - DS200 Series
DIAPHRAGM SEALED Simple Flange Process Connection－Single/Double flange type - DS250 series

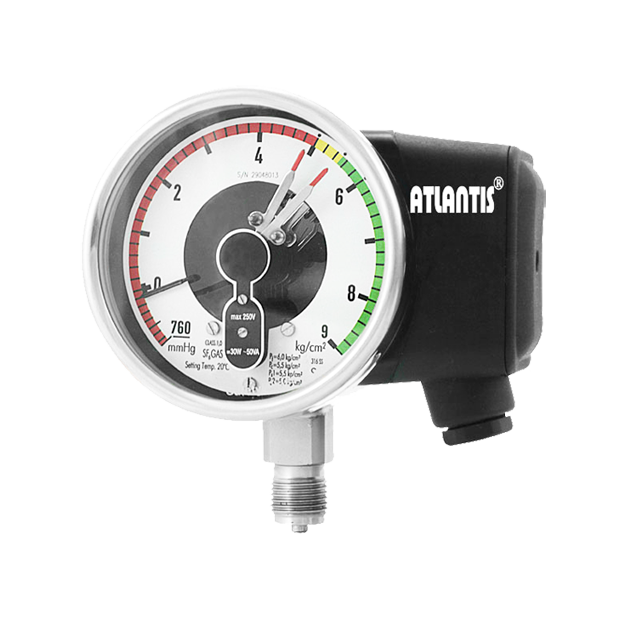

All Stainless Steel Gas Density Monitor SF6-DS

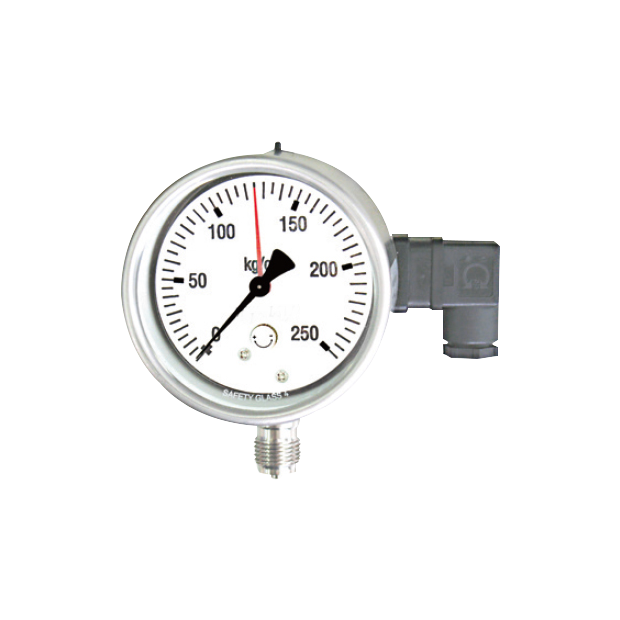

Analog Pressure Gauge with Micro Switch (Weather-proof type) AMPS (WP)
Mechanical Pressure Switch (Dual Controls Type) AT511-7DS
Mechanical Pressure Switch (General Application Type) AT511-7 Series
Simple Differential Pressure Switch ATHLD
