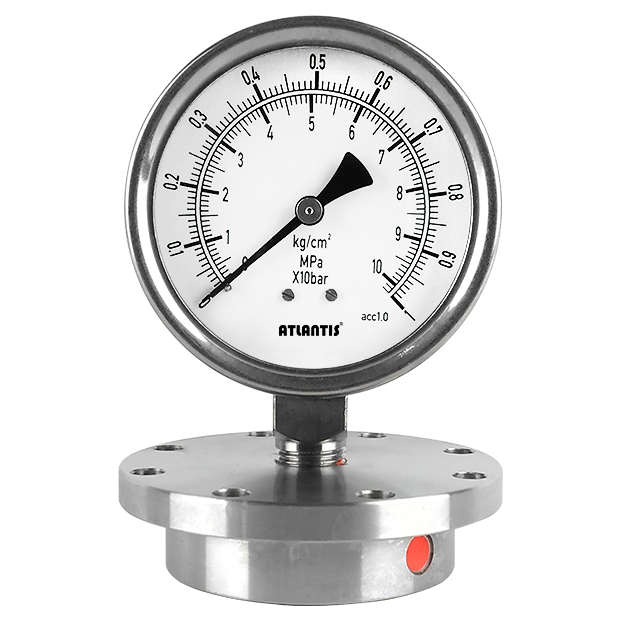

Diaphragm pressure gauges are used when medium is high viscous, crystalline or with impurities.
DS400 series is particularly used in food, beverage and pharmaceutical industry, dairies, dairy-products and breweries.

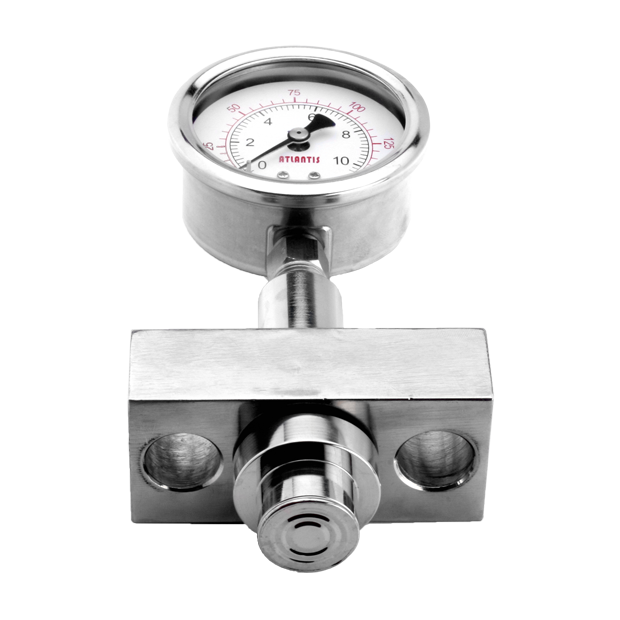

Diaphragm Seal for Homogenizer (Flush Diaphragm Type) DS350
DS350 diaphragm seal is especially designed for homogenizer. It suitable for corrosive, viscous, crystallized and impurity-contained media measurement. The open design allowing easy cleaning, and blind space has been eliminated to prevent impurity generated. The internal diaphragm seal is filled with food grade vegetable oil.

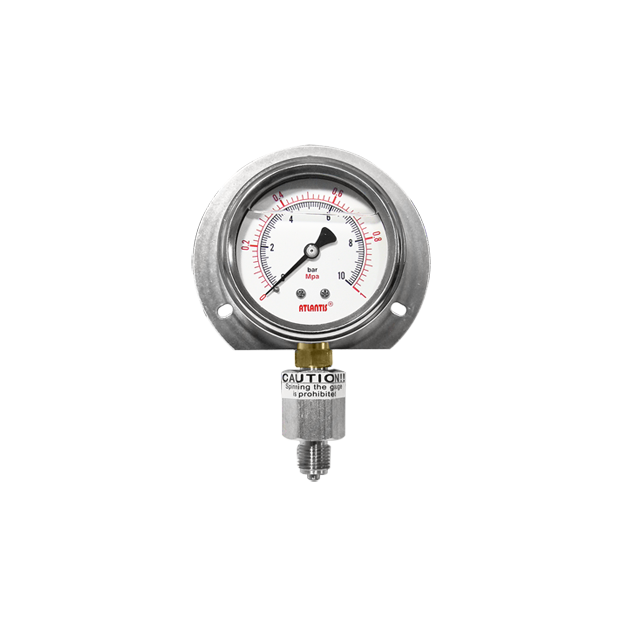

Simple diaphragm pressure gauge (Threaded Process Connection), DS122 series
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous and crystalline or with impurities. Particularly used in chemical and petrochemical industry, mechanical engineering, plants and apparatus construction.
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous and crystalline or with impurities. Particularly used in chemical and petrochemical industry, mechanical engineering, plants and apparatus construction.
DIAPHRAGM SEAL treaded Process Connection type - DS148(W) series
Diaphragm pressure gauges are used when medium fluid is corrosive, contaminated, viscous and crystalline or with impurities. DS148(W) series is particularly used in chemical and petrochemical industry, mechanical engineering, plants and apparatus construction.
Diaphragm for Homogenizer － Probe Seal Type , DS360 series
DS360 particularly used in chemical fiber factory for flowing, heterogeneous media and high pressure. Also, diaphragm of DS360 is design for Homogenizer.
Diaphragm seals generally install on pressure gauge, switch, transmitter and other instruments to protect diaphragm from corrosive, crystallized, viscous and high temperature media that may cause blockage or damage to pressure measurement system.
Different materials and pressure range can be chosen according to actual using media, connected pressure gauges, operating temperature and other factors.
DIAPHRAGM PRESSURE GAUGE - Sanitary Process Connection – Tri-Clamp Type, DS500 series
DS500 series is particularly used in food, beverage, biochemical and pharmaceutical industry. Easy to open, cleaning without residues and quickly measuring point.
DIAPHRAGM SEALED Flange Process Connection－Single flange type - DS300 series
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous, crystalline or with impurities. Flange type diaphragm seal is especially suitable for highly viscous or crystalline media, particularly used in chemical and petrochemical industry.
DIAPHRAGM SEALED Flange Process Connection－Extended diaphragm type - DS300L series
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous, crystalline or with impurities. Flange type diaphragm seal is especially suitable for highly viscous or crystalline media. DS300L is with an extended welded diaphragm with contoured diaphragm bed, especially for thick wall or #isolated tanks and pipelines.
Isolate pressure gauge from corrosive, viscous, and low crystallinity fluid./Base on the diaphragm material is PTFE, the minimum measureable pressure is 1000mmH2O /Threaded diaphragm seals with flushing hole (option)
Diaphragm pressure gauge - sanitary connection - DS400
Diaphragm Seal for Homogenizer (Flush Diaphragm Type) DS350
Thermocouple (Weather Resistance Type) TC
Simple diaphragm pressure gauge (Threaded Process Connection), DS122 series

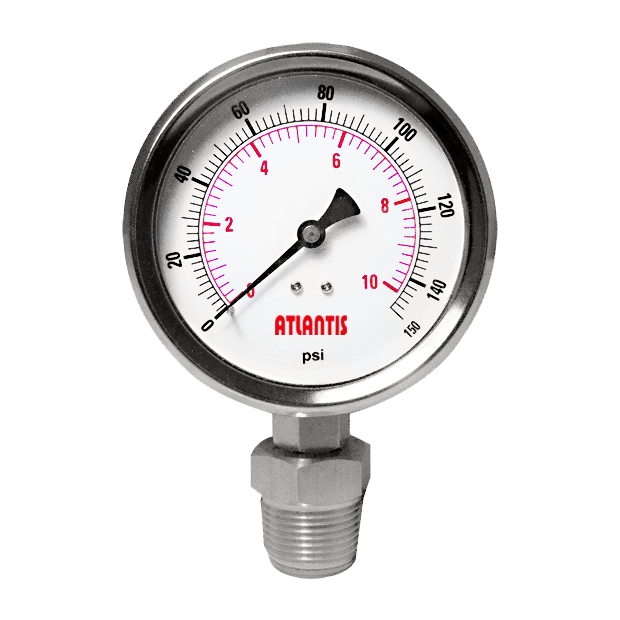

Threaded Flush Diaphragm DS132H series
