Product

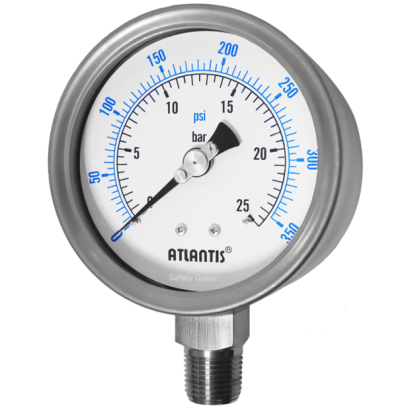

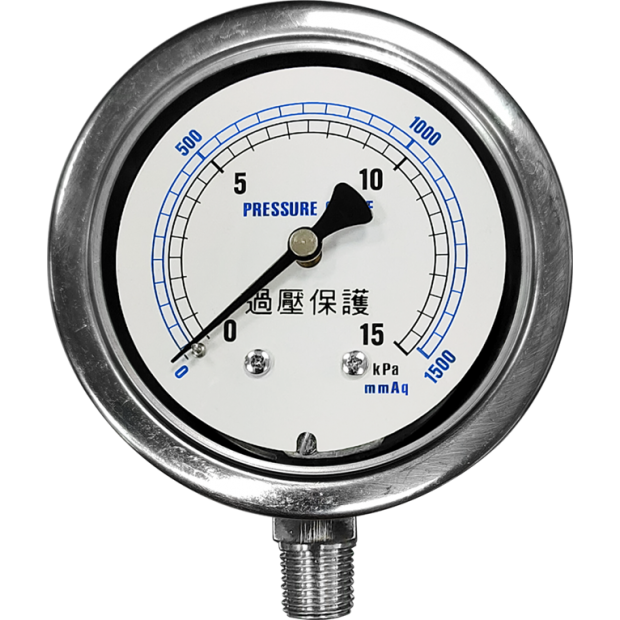

Multi-functional all-steel vertical pressure gauges with various tooth specifications to chooes from, suitable for measuring mildly corrosive media compatible with stainless steel, especially used in chemical, petrochemical, food industry, biochemistry, and other industries.

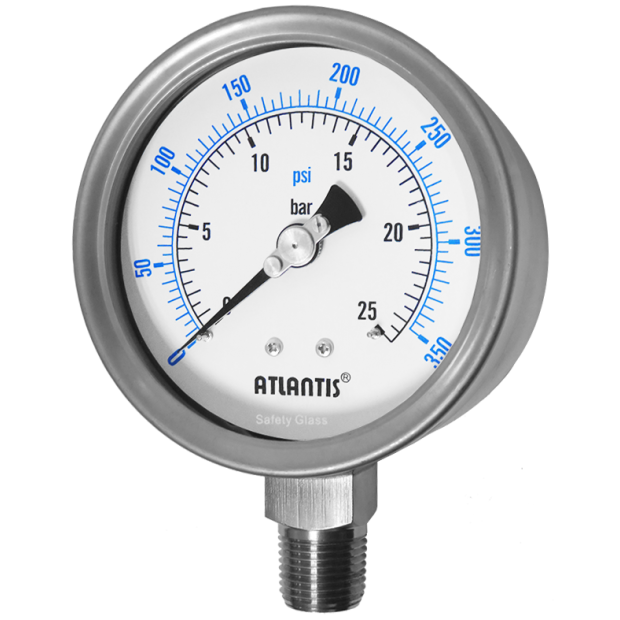

Featuring an explosion-proof design, and explosion-proof guard plate is installed at the front to enhance safety performance. The Baden tube measurement system can direct the accumulated internal energy to the back of the pressure gauge explosion-proof plate, ensuring the safety of the operators.

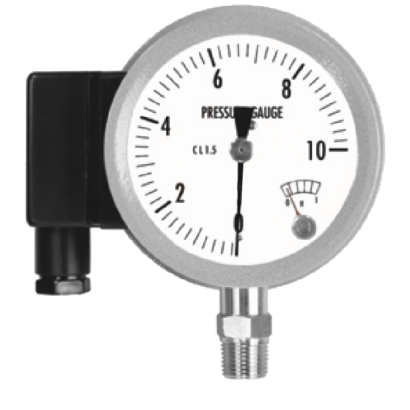

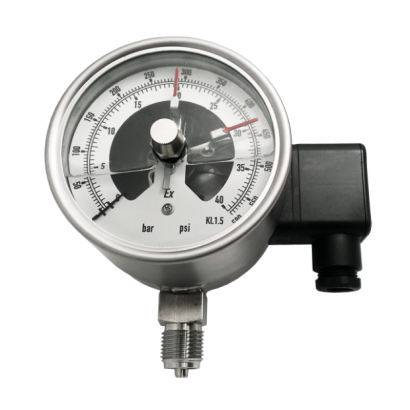

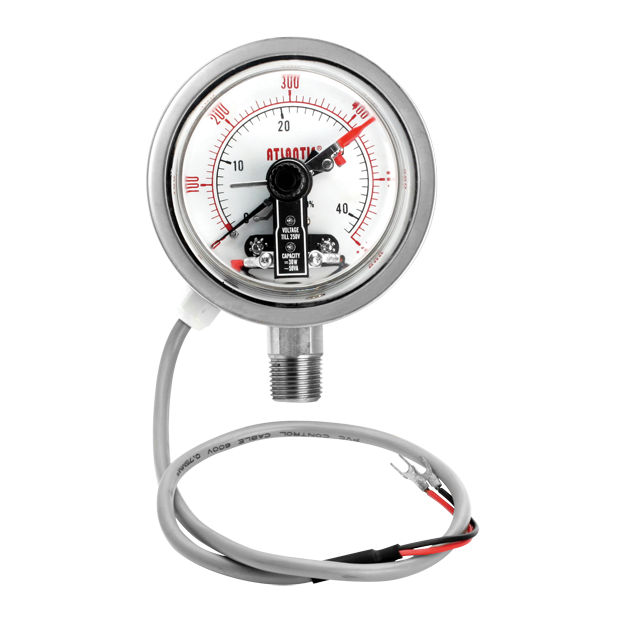

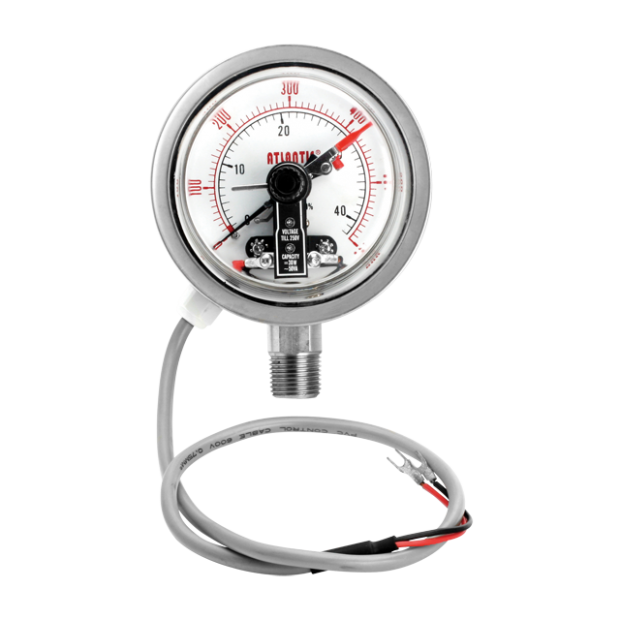

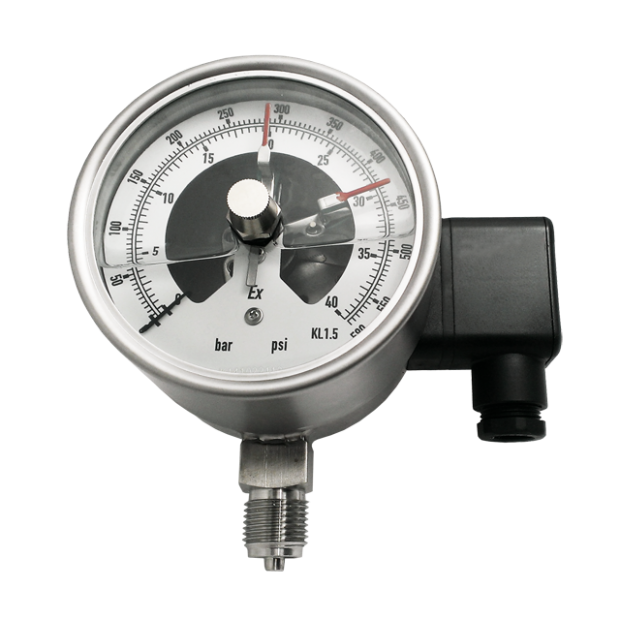

ECI-LP pressure gauge with inductive switch adopts diaphragm as measuring elements, which is suitable for micro pressure measurement. When pressure increase/decrease to set point, the contact will makes/breaks to control and alarm the connected facility.

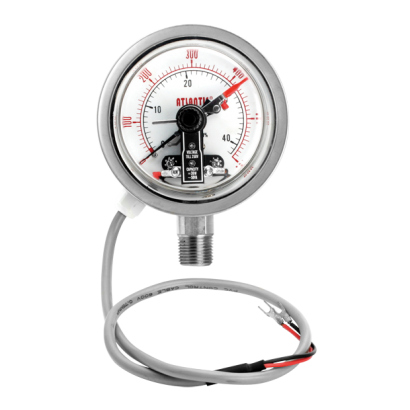

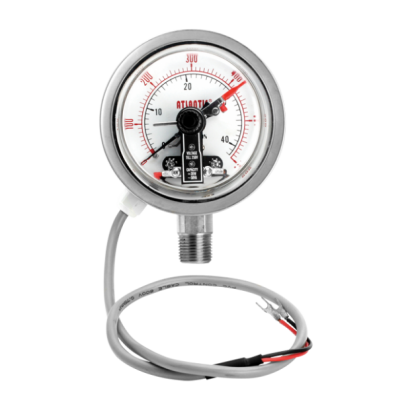

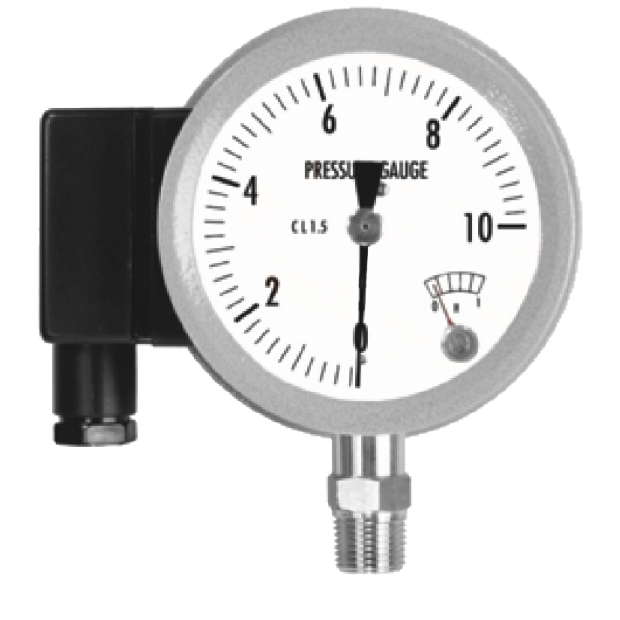

ECM pressure gauge with magnetic snap-action switch contact SPST is used to control the connected facility, ensuring field safety operation.

ECS pressure gauge with contact has buzzer alarm function, the indicator light flashing and relay can be added to control and ensure the safety of pressure operation.

MSPS contact adopts micro switch, it has better indicate accuracy, set point accuracy, and repeatability error than other contact pressure gauge. It is suitable for all kinds of pressure measurement, alarm system, industrial special oil production line.

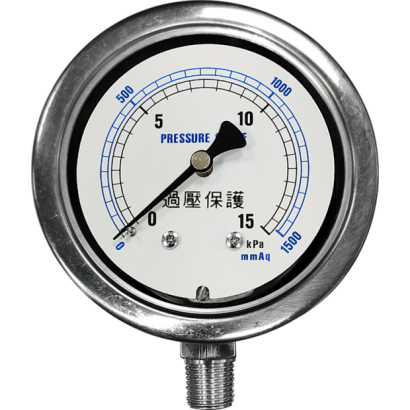

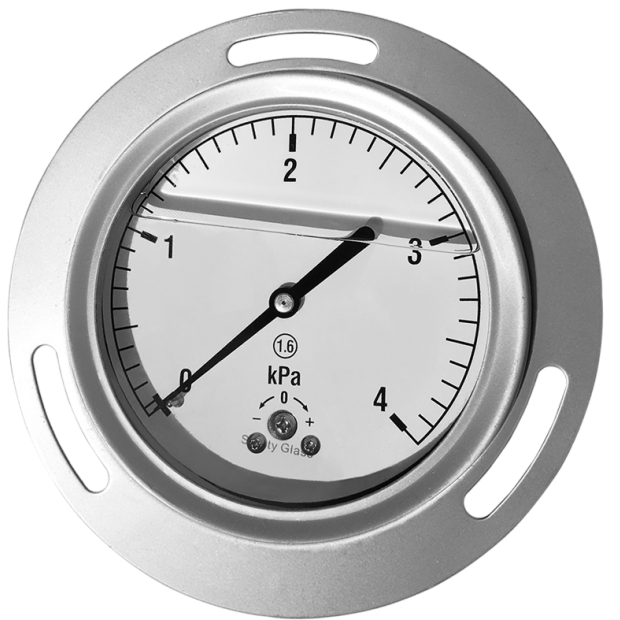

MP-SUS-L all stainless steel micro pressure gauge filled with liquid, providing excellent anti-vibration performance with long service life.

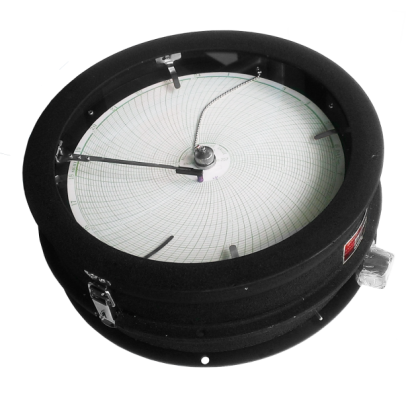

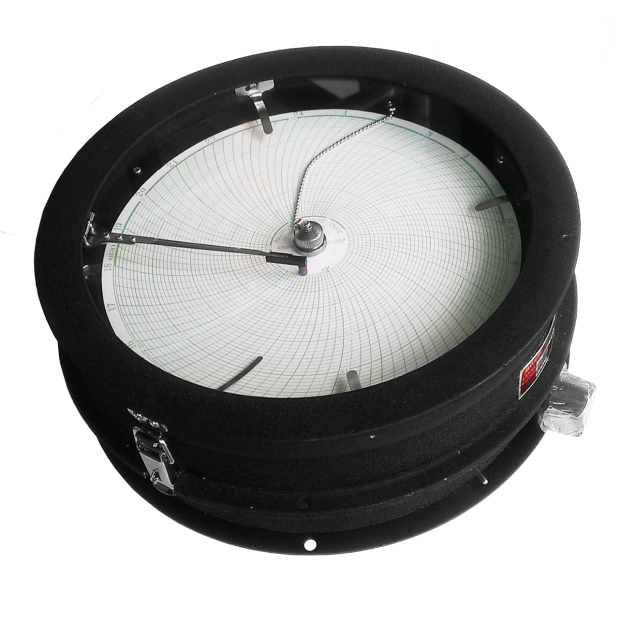

Recording principle - chart paper rotation to drive record pen recording pressure.
Single (standard) and dual (option) pens pressure record.

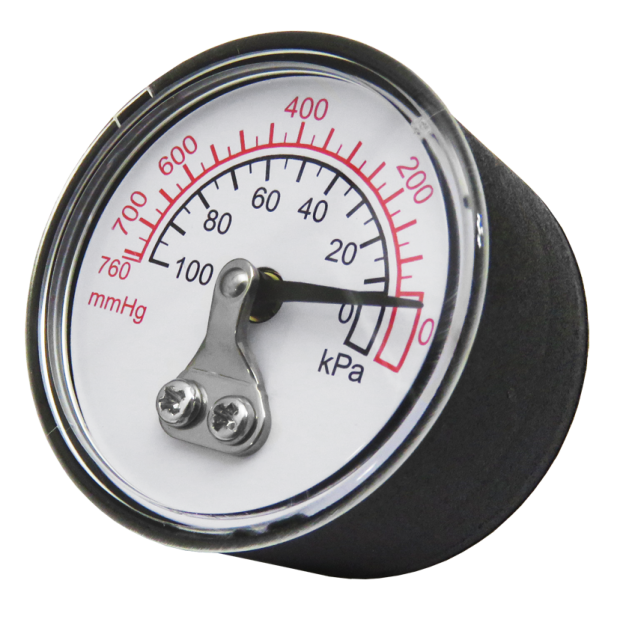

SP Series pressure gauge adopts diaphragm as measuring element to ensure great shockproof performance. SP series are suitable for high vibration frequency environment with use no oil requirement.

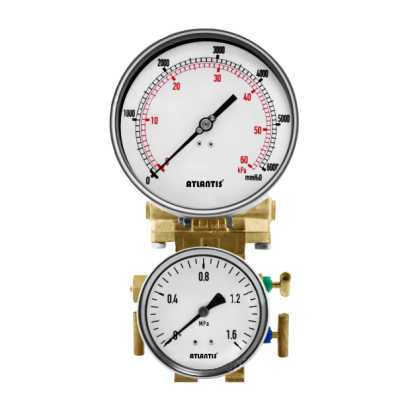

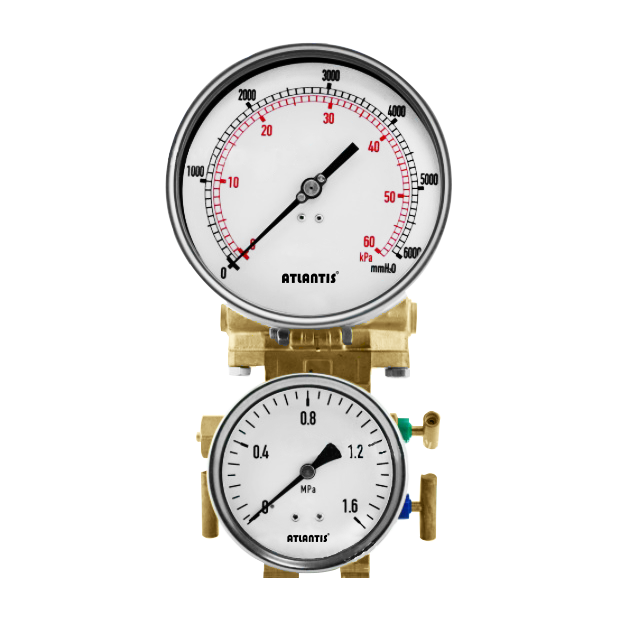

LDPG-LTHP low temperature level differential pressure gauge is suitable for non-viscous crystallization, liquid and gas medium level measurement compatible with copper alloys, and is generally used in low temperature equipment, filter equipment monitoring, pump monitoring, closed pressure storage tanks and other places in the refrigeration industry.

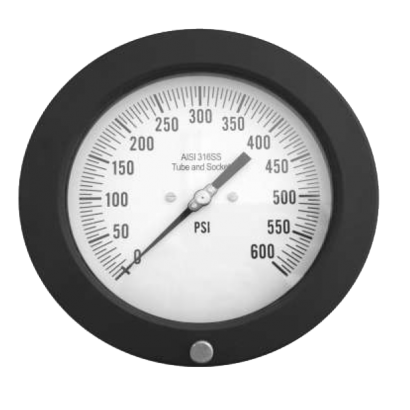

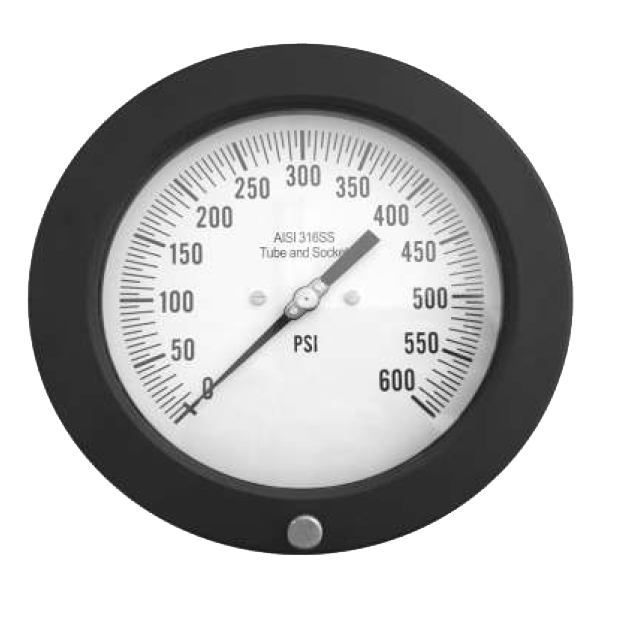

SF-0.5AC pressure adopts aluminum case with stainless steel measuring system. The solid front design is reinforced at the front, providing a blow-out back safety case design. A solid partition wall between the front of the gauge and the Bourdon tube system will redirect the released energy to the back of the gauge in which the blow-out back of the safety case design redirects any lose parts or media to exit through the back of the gauge.

Features
■ OEM service

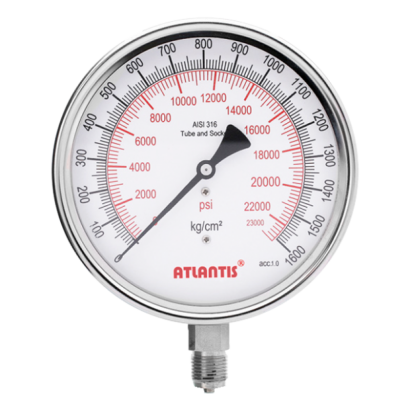

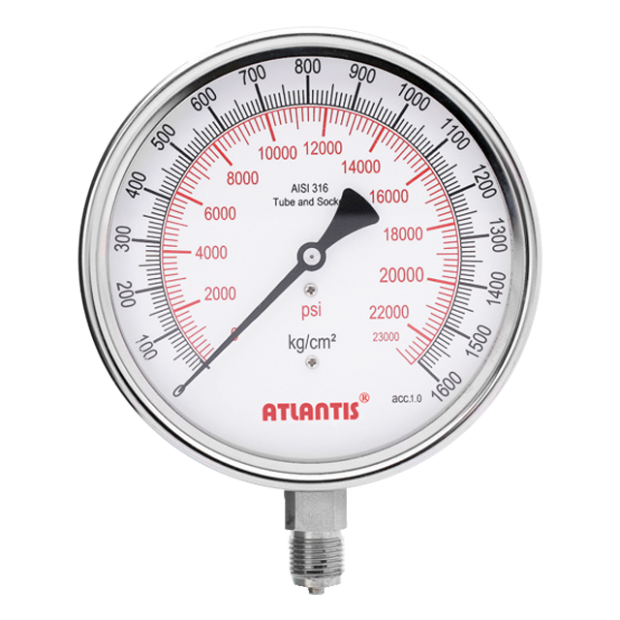

■ Specially design for high pressure measurement Maximum pressure measurement: 4000bar
■ Welded connection, maximum fluid temperature can up to 200℃
■ All stainless steel design
■ German Bourdon tube BK (bachmaier-klemmer) is available (optional)
